PRODUCTS – TOOL SHOP, MOLDS AND STAMPS

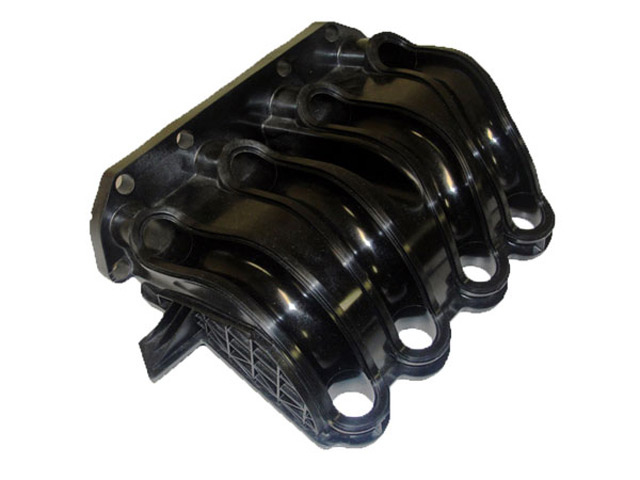

TOP MANIFOLD (MIDDLE)
Job performed: Fabrication of mold for plastic injection
Piece with visual characteristics, welding, assembling and sealing
Mold weight: 3,400 kg
Mold dimensions: 796 x 796 x 822.6 mm

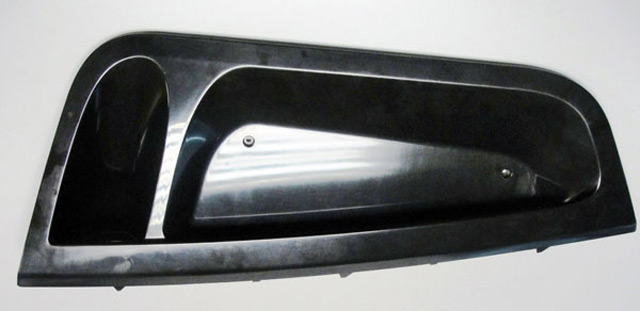

COCKPIT TOP COVER
Job performed: Fabrication of mold for plastic injection
Piece with visual characteristics, fitting, clipping and assembling.
Mold weight: 9,170 kg
Mold dimensions: 1227.2 x 1150 x 995 mm

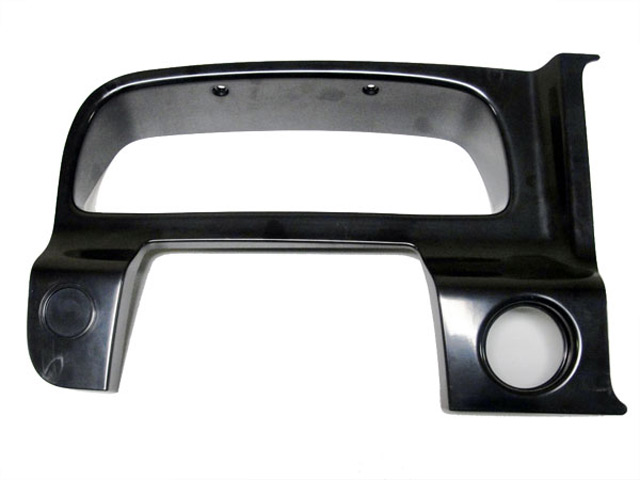

CLUSTER COVER COCKPIT
Job performed: Fabrication of mold for plastic injection
Piece with visual characteristics, fitting, clipping and assembling.
Mold weight: 6,000 kg
Mold dimensions: 1022.5 x 996 x 996 mm

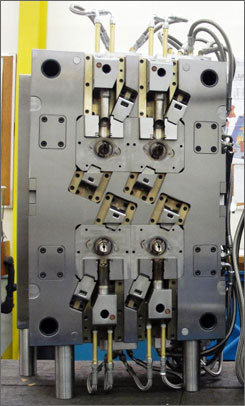

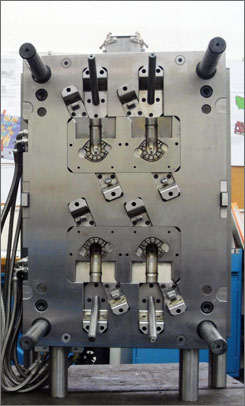

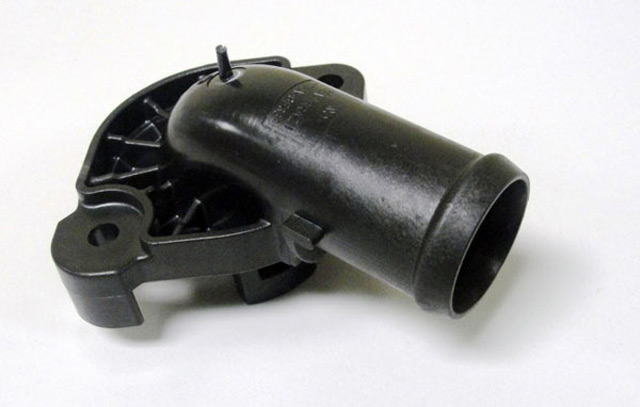

EA 111
Job performed: Fabrication of mold for plastic injection
Piece with visual characteristic, fitting, clipping and assembling.
Mold weight: 2,100 kg
Mold dimensions: 796 x 693.3 x 546 mm

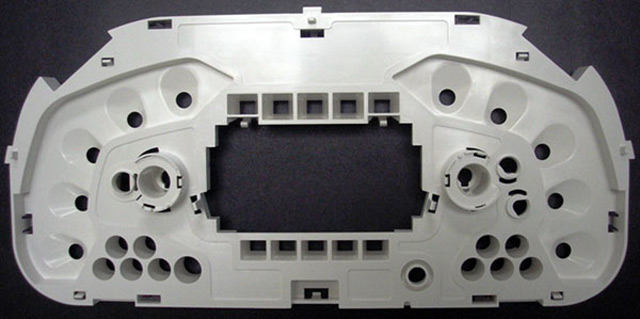

CLUSTER LIGHT GUIDE
Job performed: Fabrication of mold for plastic injection
Piece with characteristics for lighting reflection, fittings, clipping and assembling.
Mold weight: 1,100 kg
Mold dimensions: 596 x 546 x 494 mm

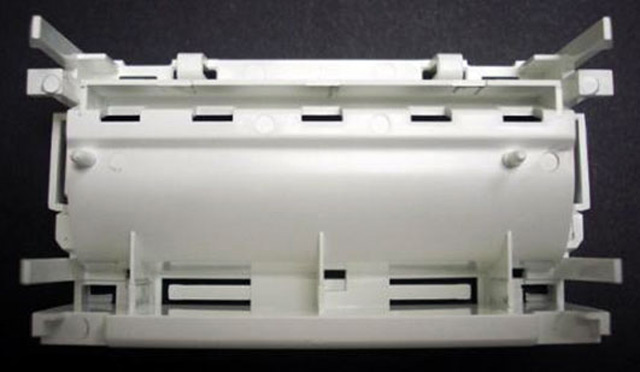

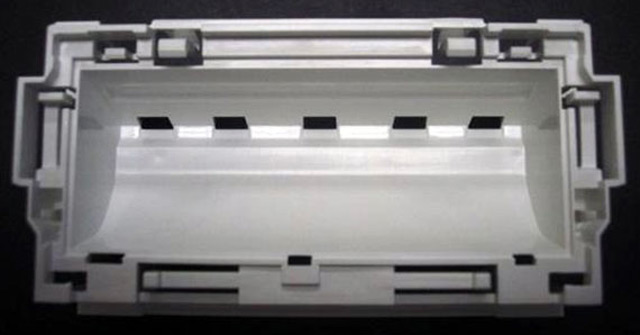

CLUSTER DISPLAY LIGHT GUIDE
Job performed: Fabrication of mold for plastic injection
Piece with characteristics for lighting reflection, fittings, clipping and assembling.
Mold weight: 280 Kg
Mold dimensions: 296 x 280.8 x 246 mm

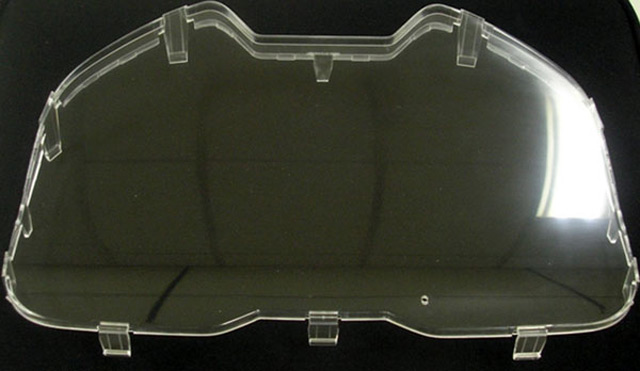

CLUSTER LENS
Job performed: Fabrication of mold for plastic injection
Piece with mirroring visual characteristics, fittings, clipping, hot stamping process and assembling.
Mold weight: 1,985 kg
Mold dimensions: 696 x 696 x 628.4 mm

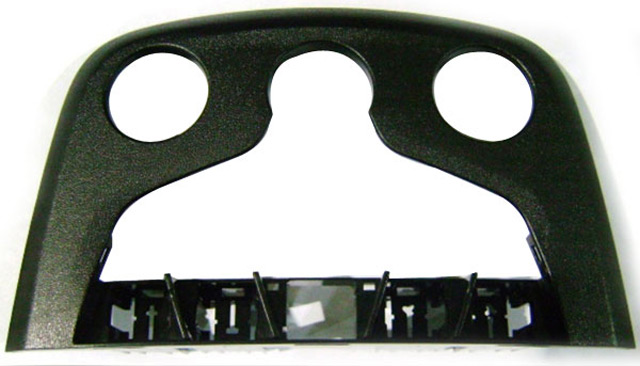

CLUSTER FRAME
Job performed: Fabrication of mold for plastic injection
Piece with texture visual characteristics, fitting, clipping and assembling.
Mold weight: 3,685 kg
Mold dimensions: 896 x 830 x 796 mm
HVAC FRAME
Job performed: Fabrication of mold for plastic injection
Piece with texture visual characteristics, fitting, clipping and assembling.
Mold weight: 776 Kg
Mold dimensions: 546 x 490.3 x 446 mm

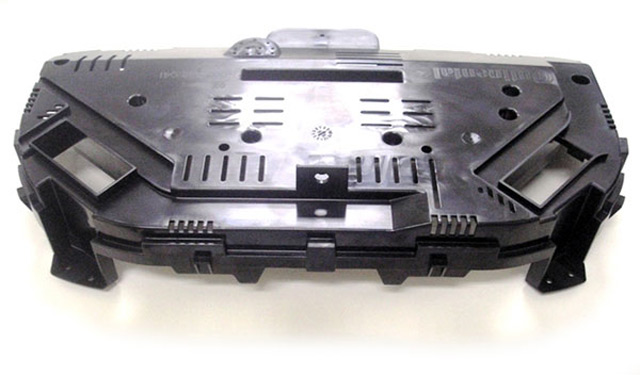

CLUSTER REAR COVER
Job performed: Fabrication of mold for plastic injection
Piece with visual characteristics, fitting, clipping and assembling.
Mold weight: 1,600 kg
Mold dimensions: 685 x 646 x 596 mm

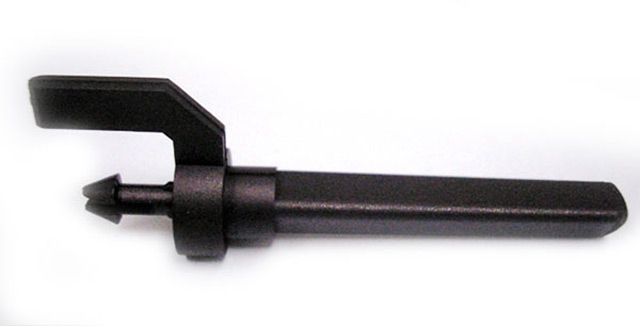

CLUSTER RESET BUTTON
Job performed: Fabrication of mold for plastic injection
Piece with visual characteristics and assembling.
Mold weight: 209 Kg
Mold dimensions: 346 x 310.8 x 296 mm

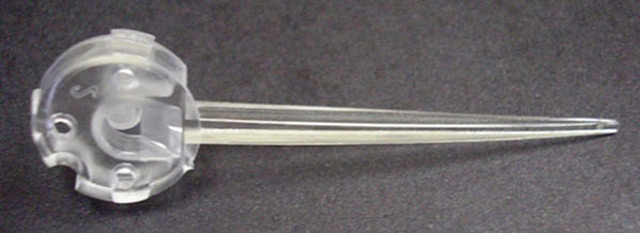

CLUSTER LARGE NEEDLE
Job performed: Fabrication of mold for plastic injection
Piece with mirroring visual characteristics for lighting reflection, hot stamping process and assembling.
Mold weight: 73 Kg
Mold dimensions: 246 x 241 x 196 mm

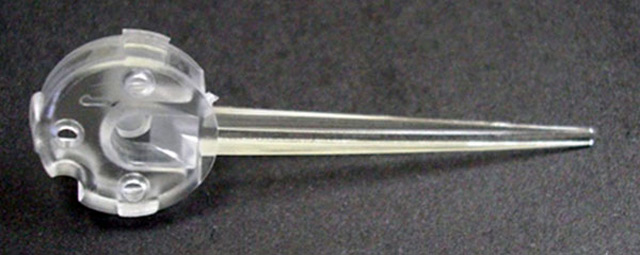

CLUSTER SMALL NEEDLE
Job performed: Fabrication of mold for plastic injection
Piece with mirroring visual characteristics for lighting reflection, hot stamping process and assembling.
Mold weight: 73 Kg
Mold dimensions: 246 x 241 x 196 mm

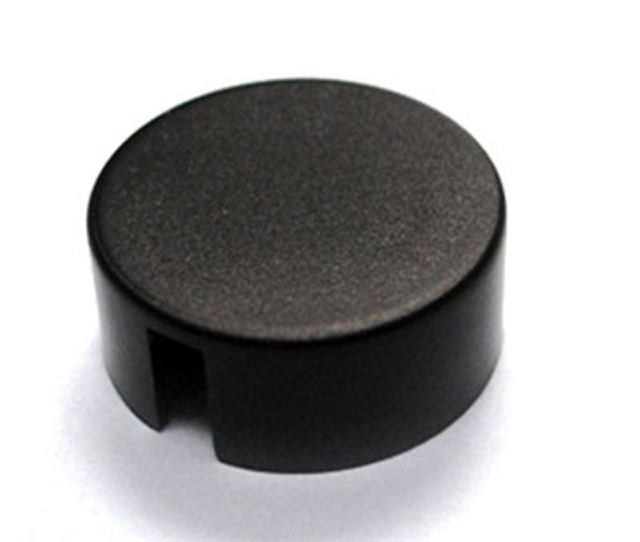

CLUSTER NEEDLE CAP
Job performed: Fabrication of mold for plastic injection
Piece with texture visual characteristics, fittings and assembling.
Mold weight: 72 Kg
Mold dimensions: 246 x 241.1 x 196 mm
HVAC TOP COVER
Job performed: Fabrication of mold for plastic injection
Piece with texture visual characteristics, fittings, clipping and assembling.
Mold weight: 776 Kg
Mold dimensions: 546 x 490.3 x 446 mm
